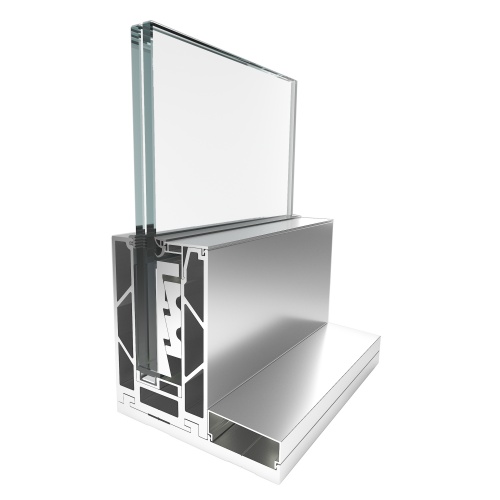

Sisitemu yo kugamamo ibirahuri byose ku igorofa ya A50 Ishusho igaragara

Sisitemu yo gukata ibirahuri byose ku igorofa ya A50

Ibisobanuro bigufi:

A50 ni sisitemu y'ibirahure biremereye ifata umuyoboro wa U ifite umurongo ibiri wo gushyiraho bolt yo kwagura, ubugari bw'ibirahure bushobora kuba 12mm, 15mm na 19mm ikirahure gishyushye, 6+1.52pvb+6mm, 8+1.52pvb+8mm, 10+1.52pvb+10mm ikirahure gishyushye.

Sisitemu ya A50 ni imiterere ya modular, kuyishyiraho bishobora gukorwa hakoreshejwe ibikoresho byoroshye. Birakwiriye kuyishyiraho ubwawe.

Agace k'urumuri gashyirwa munsi y'ikirahure no imbere mu muyoboro wa U, kazana urumuri ruhagije ku kirahure. Agace k'urumuri ka LED gakoreshwa gashobora gukoreshwa na remote control cyangwa mobile phone app.

Ohereza imeri kuri twe

Ibisobanuro birambuye ku gicuruzwa

Ibirango by'ibicuruzwa

Videwo yo gushyiramo

Ibisobanuro birambuye ku gicuruzwa

Aluminiyumu yo mu rwego rw'indege ya 6063-T5 ifite irangi ry'umukara n'iry'ikijuju ritavanze nk'uko bisanzwe.

A50 ishyigikira ikirahure cyoroshye gifite urwego rubiri (6+6/8+8/10+10), aho imiterere ya 10+10 ifite umutwaro utambitse wa 180KG/m (12% hejuru ya A40) n'ubugari buhagaze ≤ L/150 (L ni bwo burebure). Uburebure bw'ikirahure bushobora guhindurwa kugeza kuri mm 1200, kandi umugozi wa aluminiyumu (igice cya 40×20mm) urasabwa hejuru kugira ngo utandukanye ubushyuhe.

Umuyoboro wo hasi wa A50 wongeraho sisitemu y'amatara ya LED, icyuma cyo hejuru n'icyo hasi cya U-channel gikozwemo IP68 kidakoresha amazi (ingufu 6W/m, ubushyuhe bw'amabara 3000K/4000K nta yandi mahitamo), urumuri rutanga urumuri ≥ 500lm/m, gishyigikira DMX512 intelligent dimming, ikwiriye amatara nijoro cyangwa ahantu haburira umutekano.

Sisitemu ya A50 On-floor All Glass Railing System iroroshye cyane kuyishyiraho. Abakozi bakeneye guhagarara imbere muri balkoni kugira ngo barangize kuyishyiraho. Birinda ikiguzi kinini cy'akazi ko mu kirere no kuyikoresha mu nyubako. Hagati aho, izana uburinzi n'umutekano ku nyubako zawe zo ku rwego rwo hejuru, A50 inyura muri stand yo muri Amerika ASTM E2358-17 na China Standard JG/T17-2012, umutwaro w'ingufu utambitse ugera kuri 2040N kuri sqm nta bufasha bw'umuyoboro w'ingufu. Ikirahure gihuye gishobora kuba ikirahure cya 12mm, 15mm, 6+6, 8+8 na 10+10.

Raporo y'ikizamini cya ASTM E2358 cyakozwe na SGS 1

Raporo y'ikizamini cya ASTM E2358 cyakozwe na SGS 2

Raporo y'ikizamini cya ASTM E2358 cyakozwe na SGS 3

A50 Adopt hexagonal socket expansion bolts (M10×100), seti 6 kuri metero imwe, imbaraga zo gukurura ≥12kN/seti (C30 beto substrate). Ikwiriye ubwoko butandukanye bw'ibice:

Isahani ya beto: imigozi y'imiti isanzwe yashyinguwe mbere, uburebure bw'umuyoboro ≥80mm

Imiterere y'icyuma: ishongeshejwe n'urufatiro rufite imigozi (Q235B, ubugari ≥8mm)

Inzu y'imbaho: Gushyiramo ibintu byinjira + icyuma cy'inyongera inyuma (kirwanya gucika)

Igishushanyo mbonera cy'urufunguzo rw'imitingito
Yuzuyemo kaseti ifata EPDM (Ubukana bw'inkombe 70±5) hagati y'ikirahure n'umuyoboro ufite ishusho ya U, hamwe n'icyuho cyo kwaguka k'ubushyuhe bwa mm 3 gishyizwe ku muyoboro, sisitemu ishobora kwihanganira kwimuka kw'interlayer ± 15mm (ihuye n'amategeko ya GB 50011-2010).

Porogaramu

Kubera imiterere yoroshye n'isura igezweho, sisitemu ya A50 On-floor All Glass Railing System irashobora gushyirwa kuri balkoni, terase, hejuru y'inzu, ku ngazi, ku gice cya plaza, ku rukuta rw'abarinzi, ku ruzitiro rw'ubusitani, no ku ruzitiro rwa pisine.
